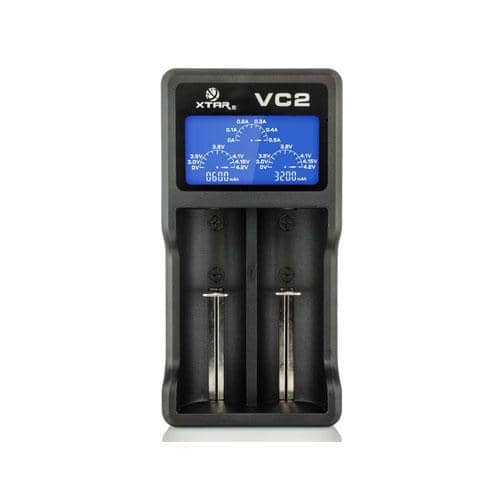

The XTAR VC2 charger is the World's first lithium-ion battery charger that features an innovative tachometer-style LCD display screen. This charger will tell you the real power of your battery! The VC2 will display the batteries mAh capacity assuming it is completely drained before charging. Like all of our chargers, it can intelligently identify input power and automatically adjust the the most suitable charge current (0.15A~0.5). It is compatible with both IMR lithium batteries and small capacity batteries. Both channels are independent and it can also tell you if you have bad batteries. And like all XTAR chargers, the VC2 features overcharge protection, over-discharge, short-circuit, and reverse polarity protection. Adopted from the VP2 charger, the VC2 can revive overly discharged batteries as well.
Microfiber carrying pouch
Input DC: 5V 1.0A
Max Constant Charging Current: 500mA*2
Cut-off Voltage (Output Voltage): 4.20V
Cut-off Current: ≤80mA
Working Temp: 0-40℃
Compatible with IMR lithium battery
Each channel is independent
Three-stage charge algorithm(TC-CC-CV)
Soft-start function, to avoid damage from large charge current while charging.
Automatically cut off when the battery is charged fully
Precision cut-off voltage at 4.2V
Compatible with small capacity battery
Over heat protection
LCD displays each battery real time statues
Use high power intelligent step-down DC - DC circuit, to greatly reduce the energy loss
Built-in reverse-polarity and short-circuit protection circuit
Use fireproof material for the shell
0V activation function can wake up the over-discharged/sleeping batteries
120°angle high definition VA screen to display the charging current ,voltage and power indicator, you can see the charging status from any angle of view.
Certified by CE, RoHS
How to test your batteries mAh capacity:
Step 1: Insert your discharged battery (at a discharge cut-off voltage generally below 3.0V)
Step 2: Let the battery charge and notice the 0000mAh displayed on the screen. Do not remove the battery until the charge is complete.
Step 3: When the battery is fully charged, the screen will show "FULL" and the entire screen will flash 3 times every 10 seconds.
Step 4: The mAh on the screen should now give you the batteries actual capacity.
